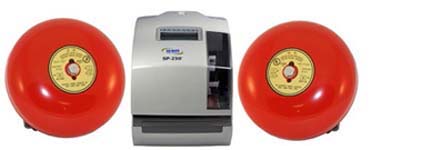

Synchronized time clock with two bells
-
One Icon SP250 time clock with signal kit pre-installed
-
One Year Guarantee, lifetime technical support.
-
One custom power supply
Note: Each power supply is custom built.
-
Two loud 6" 96 - 102dBa 120V bells
-
25' bell wire
-
Mounting hardware
-
Programming instructions and toll-free USA support line
Can be ordered with buzzers, both indoor and weatherproof. Call for that.
How to set up bells in an Icon SP250 punch clock and bell timer
Press the SELECT button until the diamond symbol is under the Time Table Program on the setting panel located under the punch clock cover.
Press Set to enter your selection for day of week, or work week, based on this table:
Day of Week
1 Monday only
2 Tuesday only
3 Wednesday only
4 Thursday only
5 Friday only
6 Saturday only
7 Sunday only
8 Monday through Friday
9 Monday through Saturday
10 Every Day
Press SET again to program the signaling scheduling dates.
Next, use the + or - buttons to choose the Action for the dates set above.
Choose option 3 to turn on the external signal
Once programming is complete, connect the power supply to the back of the clock with the wires marked CLOCK.
