Network NetBell-K
Network TCP/IP Bell


Linortek NetBell-K. All-in-one factory bell controller with built-in software. Flexible schedule options, works via your network.


Our Price: $598.00
Shipping will be calculated during checkout.

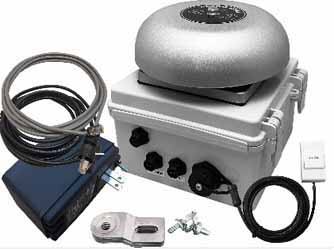

Netbell-K


Netbell-K, a Netbell Web-Based Factory Bell System

Compact and self contained, all-in one system.
This web-based factory bell system in unique. It is a fully automated web-based timed alert system for signaling shift changes and breaks in noisy places.

The system is built on a TCP/IP platform with a built in web server which allows users to access, control, and schedule the bell or buzzer accurately and effectively using an internet connection from anywhere.

This is a completely wired web controller installed with a NEMA-rated box; all software and mounting hardware required for installation is included.

It's ready to go out of the box, you need only connect the unit to power and to the existing network with provided cables.

It can be connected anywhere on the network, and does not require a direct connection to a PC.  Scheduling and setup is accessed through any standard web browser.

It is also able to function as a stand-alone device.  Connect the unit to a PC, setup the schedules, the disconnect and it will run as scheduled.

Whether networked or stand-alone, users can easily import/export their existing schedules using a simple text format.

Key features:

  • No additional software of designated computer required.
  • Built-in web server with up to 500 bell timer/event schedules, 8 adjustable ring duration types for different events, customizable for each individual "ring"
  • Import/export schedules from existing data in text format
  • Over 10,000 event log
  • Flexible and accurate control of when the bells ring:
        Formats:  HH: MM: SS   and Sunday through Saturday
  • Built-in rechargeable battery backs up your schedule in case of power outages

UPC 638170945595

Easy-to-Install: Use Netbell as either a network device or a standalone device. Install the Netbell anywhere on the network and do not require a direct connection to the PC. Then use our "Discover" program to automatically locate your device within your network. Click on the item and the web page opens up. Logon in and start scheduling your bells. The Netbell bell controller can also be used as a standalone device. Plug a computer in and load your schedules then unplug and let it run without a network connection. It is that easy.

Easy-of-use: The built in web interface provides quick access to setup and manage your bells with no additional software or programming required. Users who have a complex bell schedule already laid out can import/export their existing schedules into the Netbell system using text format.

Flexible and Accurate Control: The Netbell bell controller comes with built in real time clock with NTP automatic Internet time setting, providing you flexible and accurate control of when the bells ring (HH:MM:SS, Sunday-Saturday). The built in rechargeable battery can back up all of your settings in the event of power outage.

Fully programmable: Supplied with up to 500 schedules and different bell ringing duration type options, the Netbell bell controller takes just a few minutes to customize your bell system to meet your unique requirement.

Netbell-K Specifications

  • 10M/100M RJ45 Internet interface with connection and activity LEDs
  • 4 Relay outputs, 1 FORM C 48 Volt Max (24VAC/DC 3A)
  • Status LEDs (pulse, bootloader, and locate)
  • Ethernet Bootloader (for server hardware code upgrade)
  • Power: 12VAC (Optional)
  • Bell: 6" Inch 12 Volt DC/Die Cast Aluminium Enclosure, Volume: >= 86Db, IP24 Rated
  • Enclosure: ABS, IP67 /150mm x 150mm x 90mm (Mounting hardware supplied)
  • Accessories: 3 Meters Power Cable/3 Meters RJ45 Network Cable (With moulded connectors)
  • On board temperature sensor and input voltage sensor
  • Working Temperature from 0 to +70 Celsius
  • Storage Temperature from -40 to +125 Celsius
  • Humidity from 10% to 80% non-condensing
  • Supported Protocols: HTTP/HTTPS/SMTP/SNTP
